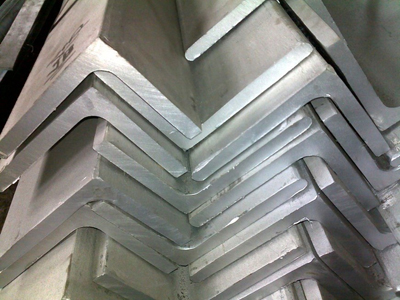

EN10025 S235JR Shipbuilding Angle steel

EN10025 S235JR Shipbuilding Angle steel

EN10025 S235JR Shipbuilding Angle steel Advantage: precision size and packaging, uniform chemical & composition, stable mechanical property .S235JR Shipbuilding Angle steel is producted by katalor. EN10025 S235JR Shipbuilding Angle steel is mainly applied
0086-21-61182423
[email protected]
PDF Download1
Live Chat  Leave a Message

EN10025 S235JR Shipbuilding Angle steel Advantage: precision size and packaging, uniform chemical & composition, stable mechanical property .S235JR Shipbuilding Angle steel is producted by katalor. EN10025 S235JR Shipbuilding Angle steel is mainly applied  to construction, cEN10025 S235JR Shipbuilding Angle steel Advantage: precision size and packaging, uniform chemical & composition, stable mechanical property .S235JR Shipbuilding Angle steel is producted by katalor. EN10025 S235JR Shipbuilding Angle steel is mainly applied  to construction, communications steel tower, civil or agricultural machine making. S235JR shipbuilding Angle steel which is available with following standard: ABS, LR, DNV, GL, NK, KR, BV, CCS, RINA.
EN10025 S235JR Shipbuilding Angle steel Dimensions:


size

kg/m

size

kg/m

20x20x3

0.88

80x80x8

9.66

25x25x3

1.12

80x80x10

11.9

25x25x4

1.45

90x90x7

9.58

30x30x3

1.36

90x90x8

10.9

30x30x4

1.78

90x90x9

12.2

30x30x5

2.18

90x90x10

13.5

35x35x3

1.6

100x100x6

9.26

35x35x4

2.1

100x100x7

10.7

40x40x3

1.84

100x100x8

12.2

40x40x4

2.42

100x100x10

15.1

40x40x5

2.97

100x100x12

178

40x40x6

3.52

120x120x10

18.2

45x45x3

2.09

120x120x12

21.6

45x45x4.5

3.06

130x130x12

23.5

45x45x6

3.52

150x150x10

23

50x50x3

2.32

150x150x12

27.3

50x50x4

3.06

150x150x15

33.8

50x50x5

3.77

160x160x15

46.1

50x50x6

4.47

180x180x16

43.5

60x60x5

4.57

180x180x18

48.6

60x60x6

5.42

200x200x16

48.5

60x60x8

7.09

200x200x18

54.3

65x65x7

6.83

200x200x20

59.9

70x70x6

6.38

200x200x24

71.1

70x70x7

7.38

250x250x28

104

75x75x6

6.85

250x250x35

128

75x75x8

9.03





75x75x10

11.1





75x75x12

13.1





Surface : Black, Galvanized, Painted
Packing: In bundle, fastened by wire rods with two metal tags be attached
Delivery Datail:7-10 Workdays after deposit
Katalor is a professional EN10025 S235JR Shipbuilding Angle steel exporter, and a steel stockiest in china. We keep more than 5000 tons EN10025 S235JR Shipbuilding Angle steel in stock monthly. If you need EN10025 S235JR Shipbuilding Angle steel , please contact us freely.
