GB/T 714 Q345q structural steel for bridges

GB/T 714 Q345q structural steel for bridges

Standard: GB/T 714-2008
Grades: Q345qC, Q345qD, Q345qE
Application:structural steel for bridges
Chemical composition (%) for GB/T 714 Q345q structural steel
Grades C Si Mn P S Nb V Ti Cr Ni Cu Mo N Als
Q345qC ≤0.20 ≤0.55 0.90-1.70 ≤0.030 ≤0.025 ≤0.06 ≤0.08 ≤0.03 ≤0.80 ≤0.50 ≤0.55 ≤0.20 ≤0.012 ≥0.015
Q345qD ≤0.18 ≤0.55 0.90-1.70 ≤0.025 ≤0.020 ≤0.06 ≤0.08 ≤0.03 ≤0.80 ≤0.50 ≤0.55 ≤0.20 ≤0.012 ≥0.015
Q345qE ≤0.18 ≤0.55 0.90-1.70 ≤0.020 ≤0.010 ≤0.06 ≤0.08 ≤0.03 ≤0.80 ≤0.50 ≤0.55 ≤0.20 ≤0.012 ≥0.015

Mechanical properties for Q345q structural steel

Grades Yield strength(MPa) min for Thickness in mm Tensile strength min. Elongation V-type impact test
≤50 >50≤100 Mpa % min Test temperature ℃ Impact absorption energy KV₂/J
Q345qC 345 335 490 20 0 47
Q345qD 345 335 490 20 -20 47
Q345qE 345 335 490 20 -40 47

Q345q steel properties
GB/T 714 Q345q steel has high strength, toughness and withstands the load and impact of locomotives, and must have good fatigue resistance, certain low temperature toughness and atmospheric corrosion resistance. Low notch sensitivity.

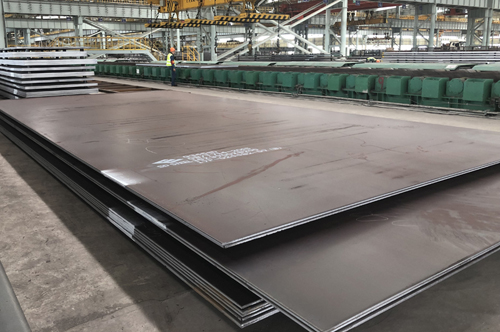

Q345q structural steel plate and sheet are delivered in hot rolled, controlled rolled, normalized or normalized rolled condition. We can supply Q345qC, Q345qD steel sheets, Q345qE steel plate with thickness up to 100mm. Welcome to contact us email [email protected]  if you are interested in our Q345q bridge steel plate.
